5  Integrated Platforms, Tools, and Technologies

5.1 Version Control: Git & GitHub

Source: Google Images

5.1.1 What is Version Control?

Imagine you’re writing a research paper. You make changes, save different versions, and sometimes want to go back to previous versions. Version control is like having a time machine for your files - it helps you track changes, collaborate with others, and maintain a history of your work.

Git was made by Linus Torvalds, the same person who made Linux! It is like a super-powered save system. Instead of saving files with names like paper_FINAL_final_UPDATED_NEW.docx or proj_NEW_LASTEST.R, Git keeps track of all changes automatically.

5.1.2 Basic Git Concepts & Commands

  • Repository (Repo): Think of it as a project folder that Git watches. Like a photo album that keeps track of all your project’s versions. Local repo is a copy of the remote repo on your computer. Remote repo can be the version stored on GitHub or GitLab.

  • Commit: Like taking a snapshot of your work. Each commit is a saved point you can return to. Like saving a checkpoint in a video game or giving your file a name/version.

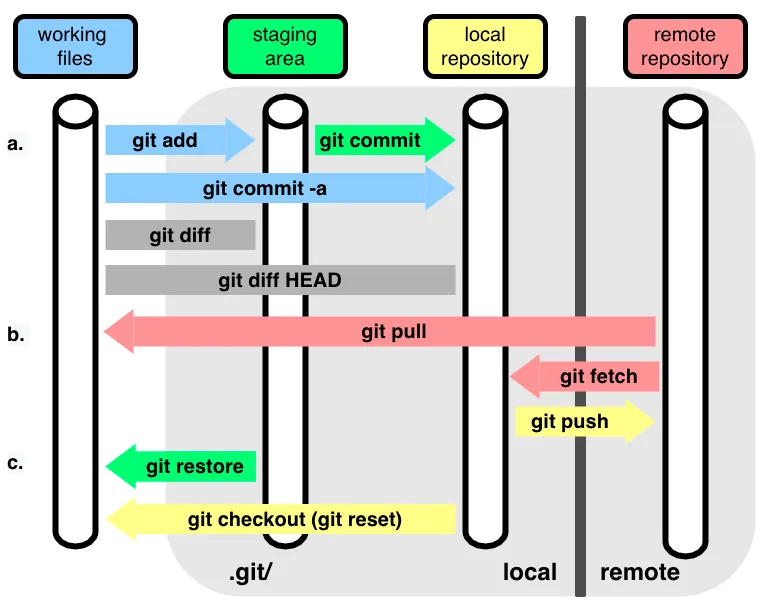

Git in a nutshell - Source
  • Branch: Like creating a parallel universe for your work. You can experiment without affecting the main project. Like writing a draft of your paper without changing the original. Also can be used to collaborate with others, simultaneously working on the same project! You can Merge your changes back to the main branch after you are done. Master/Main branch is the main branch of the repo.

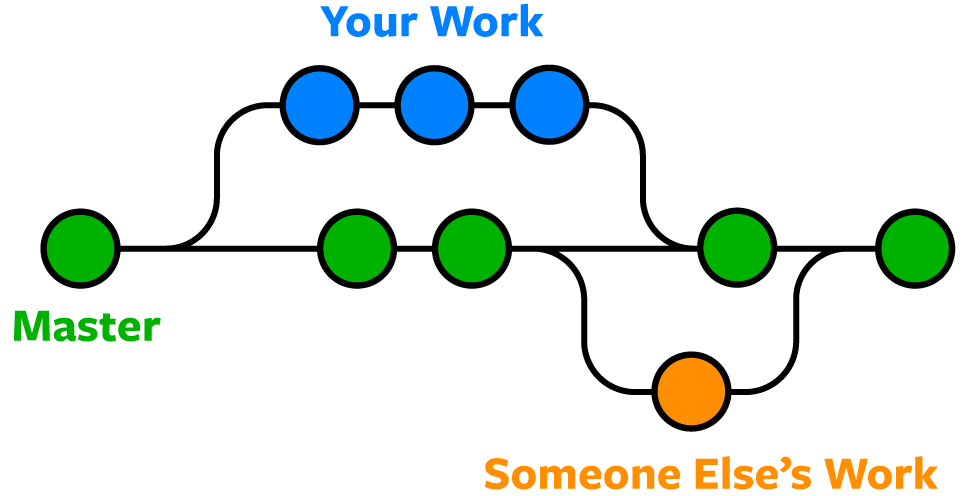

Git Branches - Source
# Start a new project (create a new repository)
git init

# Check the status of your files
git status

# Add files to be saved (staging)
git add filename.txt    # Add specific file
git add .              # Add all files

# Save your changes (commit)
git commit -m "Description of changes"

# See your project history
git log

# Reset your branch to the latest commit
git reset --hard

5.1.3 GitHub: Your Project’s Home on the Internet

GitHub vs Bitbucket vs GitLab

GitHub is like a social network for your code. It’s where you can store your projects online, collaborate with others and share your work with the world. GitHub has Repository Hosting - a cloud storage specifically for code, Issue Tracking - a to-do list for your project and bug reporting, Pull Requests - suggesting changes to someone else’s work or requesting changes to your own work, Code Review - peer review process for your code, and CI/CD features. Common workflows in GitHub: Fork a Repository: Like making a copy of someone else’s project. You can modify it without affecting the original. Push Changes: Like uploading your changes to GitHub. Clone a Repository: Like downloading a project to your computer.

# Clone a repository
git clone https://github.com/username/repository.git

# Get updates from remote repository
git pull

# Send your changes to remote repository
git push

5.1.4 Common Scenarios and Best Practices

When working with Git, follow these key practices: write short & clear commit messages to document changes, create feature branches for new work, keep your local copy updated regularly, and review changes before committing. For beginners, start with basic commands and simple projects, you can utilize visual tools like GitHub Desktop or VS Code’s Git integration but I prefer to use the command line (more straightforward), learn from mistakes. Git maintains history so you can always revert!!

What usually happens daily:

  1. Starting a New Project

    git init
git add .
git commit -m "Initial commit"
  • Note: I prefer to initialize a new repository in GitHub with a README file and LICENSE, and then clone it to my local machine.

  1. Updating Your Work

    git pull
# Make changes
git add .
git commit -m "Description of changes"
git push

  2. Working with Branches

    git checkout -b new-branch-name
# Make changes
git add .
git commit -m "Description of changes"
git push
git checkout main
git merge new-branch-name

Git and B Cell Analogy!

5.1.5 Learning resources

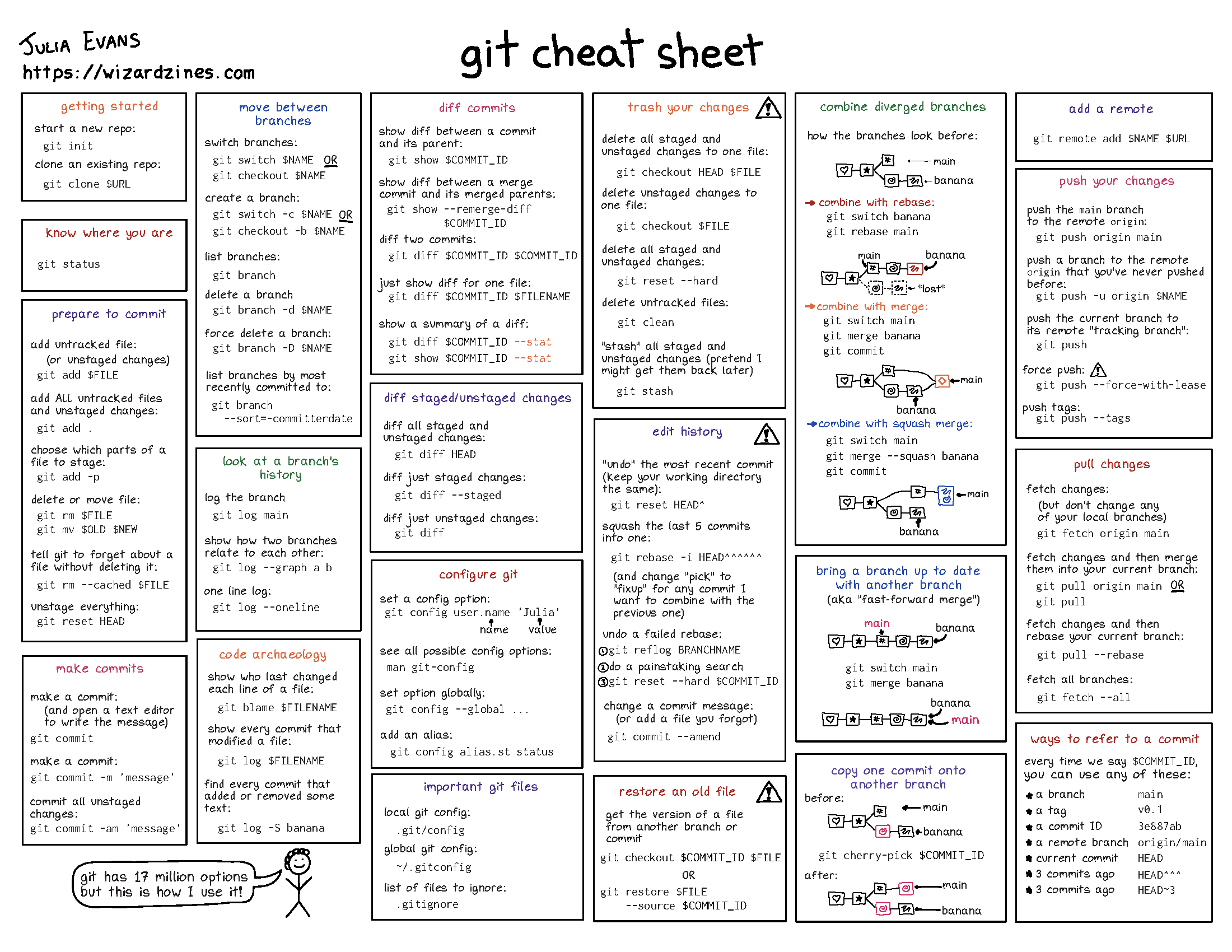

Git Cheat Sheet! PDF

5.2 DevOps for Bioinformatics

DevOps is a set of practices that combines software development (Dev) and operations (Ops) to improve collaboration and speed of delivery. Bioinformatitians need it to make their pipelines reproducible, scalable, and efficient.

5.2.1 Key Concepts

  • Continuous Integration/Continuous Deployment (CI/CD)
  • Infrastructure as Code (IaC)
  • Container Orchestration
  • Automated Testing
  • Monitoring and Logging
  • Reproducible Environments

5.2.3 Essential DevOps Skills for Bioinformaticians

  1. Containerization
    • Creating reproducible environments
    • Managing dependencies
    • Building and sharing containers
    • Example: Creating a Dockerfile for a bioinformatics pipeline
  2. Workflow Management
    • Nextflow/Snakemake for pipeline automation
    • Version control for workflows
    • Example: Setting up a CI/CD pipeline for genomic analysis
  3. Infrastructure Management
    • Cloud resource provisioning
    • Cost optimization
    • Example: Setting up a cloud-based analysis environment
  4. Monitoring and Logging
    • Tracking pipeline performance
    • Error handling and debugging
    • Example: Setting up monitoring for a production pipeline
  5. Security Best Practices
    • Data protection
    • Access control
    • Example: Implementing secure data transfer protocols

5.2.4 Common DevOps Workflows in Bioinformatics

  1. Pipeline Development

    # Example GitHub Actions workflow for testing a bioinformatics pipeline
name: Pipeline Tests
on: [push, pull_request]
jobs:
  test:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v2
      - name: Run Tests
        run: |
          docker build -t mypipeline .
          docker run mypipeline test

  2. Environment Management

    # Example Dockerfile for a bioinformatics environment
FROM continuumio/miniconda3
RUN conda install -c bioconda -c conda-forge \
    bwa \
    samtools \
    bedtools

  3. Infrastructure as Code

    # Example Terraform configuration for cloud resources
resource "aws_instance" "bioinfo_server" {
  ami           = "ami-0c55b159cbfafe1f0"
  instance_type = "t2.large"
  tags = {
    Name = "bioinfo-analysis-server"
  }
}

5.2.5 Best Practices

  1. Version Control
    • Use Git for all code and configuration
    • Implement branching strategies
    • Document changes thoroughly
  2. Testing
    • Write unit tests for scripts
    • Implement integration tests
    • Use test data sets
  3. Documentation
    • Maintain README files
    • Document dependencies
    • Keep changelogs
  4. Security
    • Follow data protection guidelines
    • Implement access controls
    • Regular security audits
  5. Performance
    • Monitor resource usage
    • Optimize workflows
    • Implement caching strategies

5.3 Workflow Management Systems

5.3.1 Key Concepts

  • Pipeline Automation
  • Reproducible Analysis
  • Resource Management
  • Parallel Processing
  • Error Handling

5.3.3 Essential Workflow Management Skills

  1. Pipeline Design
    • Modular workflow components
    • Parameter management
    • Error handling
    • Example: Creating a Nextflow script for RNA-seq analysis
  2. Resource Optimization
    • Parallel processing
    • Memory management
    • CPU utilization
    • Example: Configuring resource allocation in workflows
  3. Integration with DevOps
    • Containerization
    • Version control
    • CI/CD integration
    • Example: Setting up automated testing for workflows
  4. Monitoring and Debugging
    • Workflow execution tracking
    • Error reporting
    • Performance monitoring
    • Example: Implementing logging and monitoring in workflows

5.3.4 Common Workflow Patterns

  1. Data Processing Pipeline

    # Example Nextflow script for data processing
#!/usr/bin/env nextflow

params.input = "data/raw/*.fastq.gz"
params.outdir = "results"

process PROCESS_DATA {
  input:
  path reads

  output:
  path "*.processed", emit: processed

  script:
  """
  process_data.sh $reads > processed.txt
  """
}

workflow {
  reads = Channel.fromPath(params.input)
  PROCESS_DATA(reads)
}

  2. Parallel Analysis

    # Example Nextflow script for parallel analysis
#!/usr/bin/env nextflow

process PARALLEL_ANALYSIS {
  input:
  path data

  output:
  path "*.results", emit: results

  script:
  """
  analyze.sh $data > results.txt
  """
}

workflow {
  data = Channel.fromPath("data/*.txt")
  PARALLEL_ANALYSIS(data)
}

5.4 SaaS Platforms

5.4.1 Key Concepts

  • Cloud-Based Bioinformatics Tools
  • Web-Based Analysis Platforms
  • Collaborative Research Environments
  • Data Sharing and Management
  • Workflow Automation

5.5 Cloud Computing and Data Management

5.5.1 Key Concepts

  • Cloud Infrastructure (AWS, GCP, Azure)
  • Containerization (Docker, Singularity)
  • Workflow Management
  • Data Storage and Transfer
  • Cost Optimization

5.6 High-Performance Computing (HPC)

5.6.1 Key Concepts

  • Cluster Computing
  • Parallel Processing
  • Job Scheduling
  • Resource Management
  • Performance Optimization

5.7 Data Visualization Techniques

5.7.1 Key Concepts

  • Scientific Visualization
  • Interactive Dashboards
  • Statistical Graphics
  • Network Visualization
  • 3D Visualization

5.8 Big Data Analysis

5.8.1 Key Concepts

  • Distributed Computing
  • Data Processing Frameworks
  • Machine Learning at Scale
  • Real-time Analytics
  • Data Warehousing
